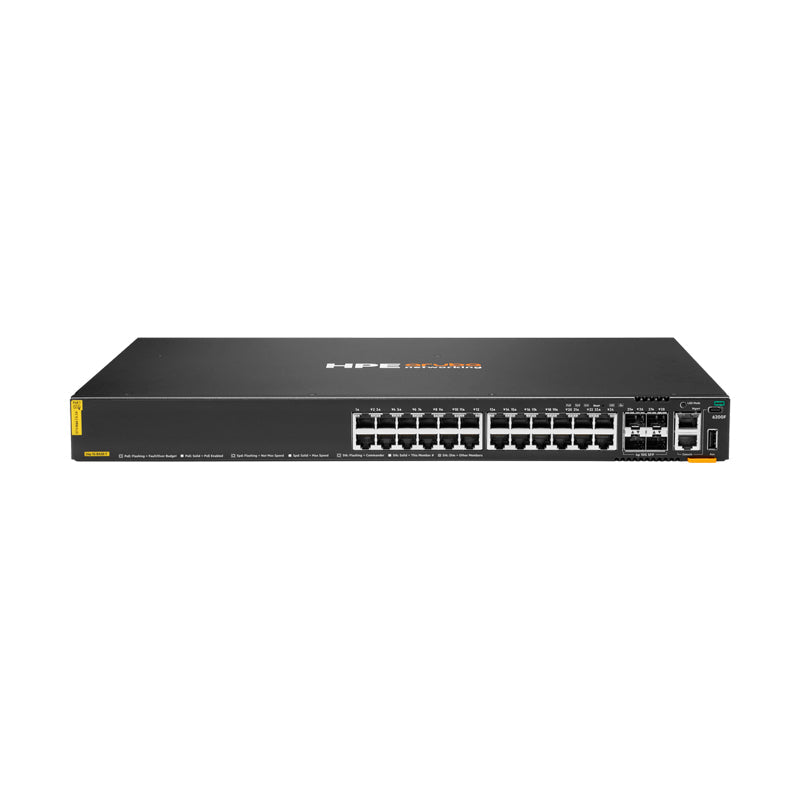

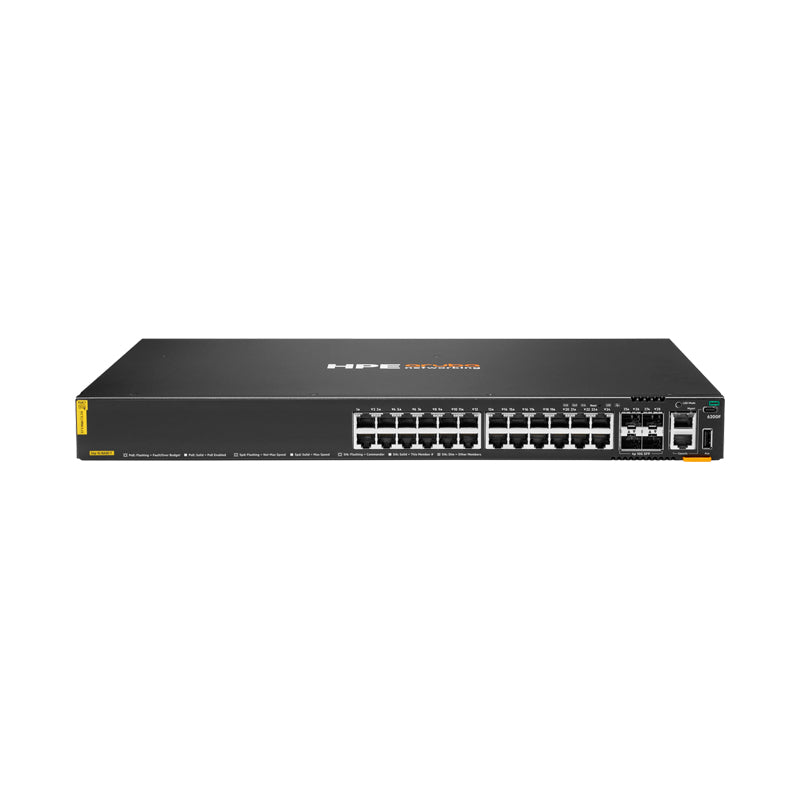

JL725B HPE Aruba Networking CX 6200F 24G Class‑4 PoE 4SFP+ 370W Switch
25 in stock
Couldn't load pickup availability
The HPE Aruba CX 6200F 24G Class 4 PoE Switch is a fixed-configuration, enterprise-class access switch designed for campus, branch, and SMB networks, delivering reliable performance, scalable stacking, and integrated PoE support.
Key Highlights
-
Enterprise-grade fixed access switch with Aruba CX OS
-
Integrated Class 4 PoE for edge and IoT devices
-
High-speed 1G/10G SFP+ uplinks
-
VSF stacking for scalable network expansion
-
Built-in security and simplified management
Key Specifications
| Parameter | Details |
|---|---|
| Ports | 24 × 10/100/1000BASE-T Class 4 PoE |
| Uplinks | 4 × 1G/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | 1Gbps: 2.28 μs / 10Gbps: 1.46 μs |
| Stacking | VSF, up to 8 members |
| PoE Capability | Up to 370W (IEEE 802.3af/at) |
| Power Supply | Fixed internal PSU |
| Management | Aruba CX OS |
| Form Factor | 1U, rack-mountable |
Key Features & Benefits
-
Compact PoE access design – Power wireless APs, IP phones, and IoT devices with integrated Class 4 PoE.
-
High-speed uplinks – Enable flexible 1G and 10G connectivity to aggregation or core layers.
-
Scalable VSF stacking – Increase port density and simplify operations by stacking up to 8 switches.
-
Enterprise security – Support ACLs, QoS, and advanced access controls for secure network access.
Model Options
-
24-port and 48-port configurations
-
Multiple PoE power budgets within the CX 6200F series
-
PoE and non-PoE variants available
-
Vendor:
aruba
-
Type:
Switches
