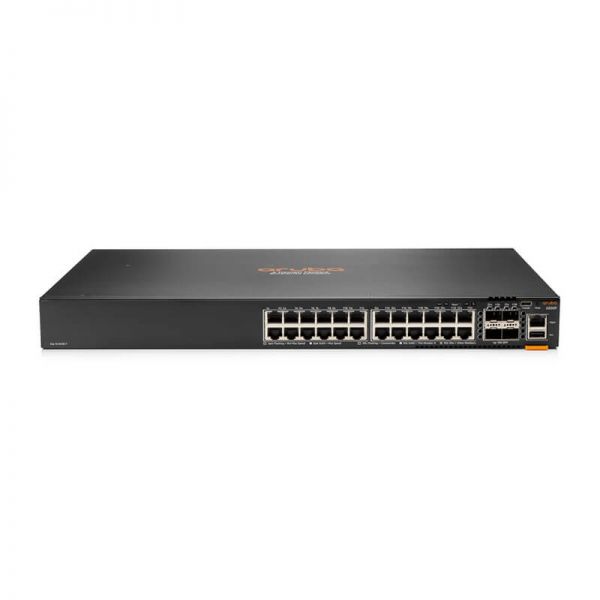

JL724A - HPE Aruba 6200F Series Switch 24G 4SFP+ Switch
Low stock: 5 left
Couldn't load pickup availability
The Aruba CX 6200 JL724A is a next-generation, stackable Layer 2 access switch designed for enterprise branch offices, campuses, and SMB networks. With the built-in Aruba Network Analytics Engine (NAE), it provides real-time monitoring, proactive troubleshooting, and intelligent insights to optimize network performance.
Key Features & Benefits
-
Enterprise-Class Layer 2 Connectivity: Supports ACLs, robust QoS, and standard routing protocols such as static and OSPF for reliable network performance.
-
Scalable Architecture: VSF stacking of up to 8 members allows seamless network expansion without added complexity.
-
High-Speed Uplinks: 1/10GbE uplinks provide fast aggregation to distribution or core layers.
-
Intelligent Monitoring: Aruba NAE delivers advanced visibility, monitoring, and troubleshooting for rapid issue resolution.
-
Future-Ready Networking: Supports growing networks with flexible configuration and operational simplicity.
Quick Specifications
| Parameter | Details |
|---|---|
| Model | JL724A |
| Ports | 24 × 10/100/1000BASE-T, 4 × 1/10G SFP |
| PoE | Not supported |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | 1 Gbps: 2.28 µs, 10 Gbps: 1.46 µs |
| Memory & Processor | Quad-Core ARM Cortex-A72 @ 1.8 GHz |
| Stacking | Up to 8 members |
| Input Voltage | 100–120V / 200–240V |
| Power Consumption | 59 W (at 230 VAC) |
| Management | Aruba AirWave, Aruba Central, Aruba NetEdit, CLI, SNMP v2c/v3, RMON |
Model Comparison
| Module | Ports | Memory & Processor | Throughput |
|---|---|---|---|
| JL724A | 24 × 10/100/1000BASE-T, 4 × 1/10G SFP | Quad-Core ARM Cortex-A72 @ 1.8 GHz | Up to 95.2 Mpps |
| JL727A | 48 × 10/100/1000BASE-T (Class 4 PoE), 4 × 1/10G SFP | Quad-Core ARM Cortex-A72 @ 1.8 GHz | Up to 130.9 Mpps |
-
