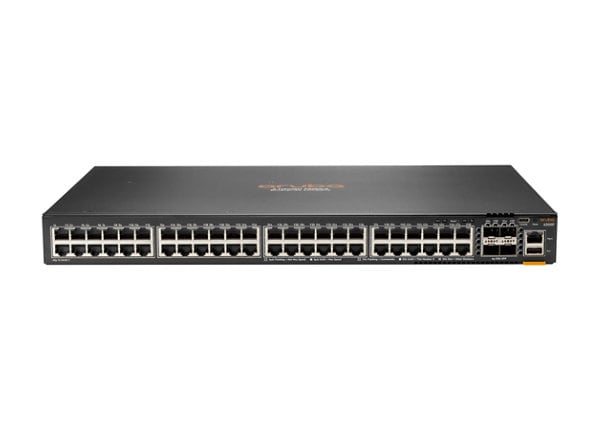

JL667A - HPE Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch
20 in stock
Couldn't load pickup availability
The Aruba CX 6300 JL667A is an intelligent, stackable Layer 3 switch designed for access, aggregation, and Top-of-Rack (ToR) deployments. It features a cloud-centric design with a fully programmable OS and Aruba Network Analytics Engine for advanced monitoring, automation, and troubleshooting at the access layer.
Key Features & Benefits
-
Advanced Layer 3 Switching: Supports BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS. MACsec 256, PTP, AVB, and LRM are also supported.
-
High Performance: Delivers 880 Gbps system switching capacity, 660 MPPS system throughput, and up to 200 Gbps stacking bandwidth.
-
Flexible Connectivity: 48× 1GbE Smart Rate ports and 4× 1/10/25/50G SFP/SFP+/SFP28/SFP56 uplinks.
-
PoE Support: Up to 90W per port on compatible models for powering devices like APs, cameras, and phones.
-
Operational Efficiency: Built-in Aruba Network Analytics Engine for real-time insights, troubleshooting, and network optimization.
-
Reliable Design: Internal PSU and fans in a 1U chassis, with airflow optimized for data center or ToR deployments.
Quick Specifications
| Parameter | Details |
|---|---|
| Model | JL667A |
| Access Ports | 48× 10/100/1000BASE-T |
| Uplinks | 4× 1/10/25/50G SFP/SFP+/SFP28/SFP56 |
| PoE | Up to 90W per port (on compatible models) |
| Switching Capacity | 880 Gbps |
| Throughput | 660 MPPS |
| Stacking Bandwidth | Up to 200 Gbps |
| Power Consumption | 74 W (maximum) |
| Input Voltage | 100–120 / 200–240 VAC |
| Latency | 1Gbps: 2.28 μs, 10Gbps: 1.46 μs, 25Gbps: 1.90 μs, 50Gbps: 3.49 μs |
| Power Supply | Internal |
| Fans | Internal |
| Chassis | 1U height |
-
