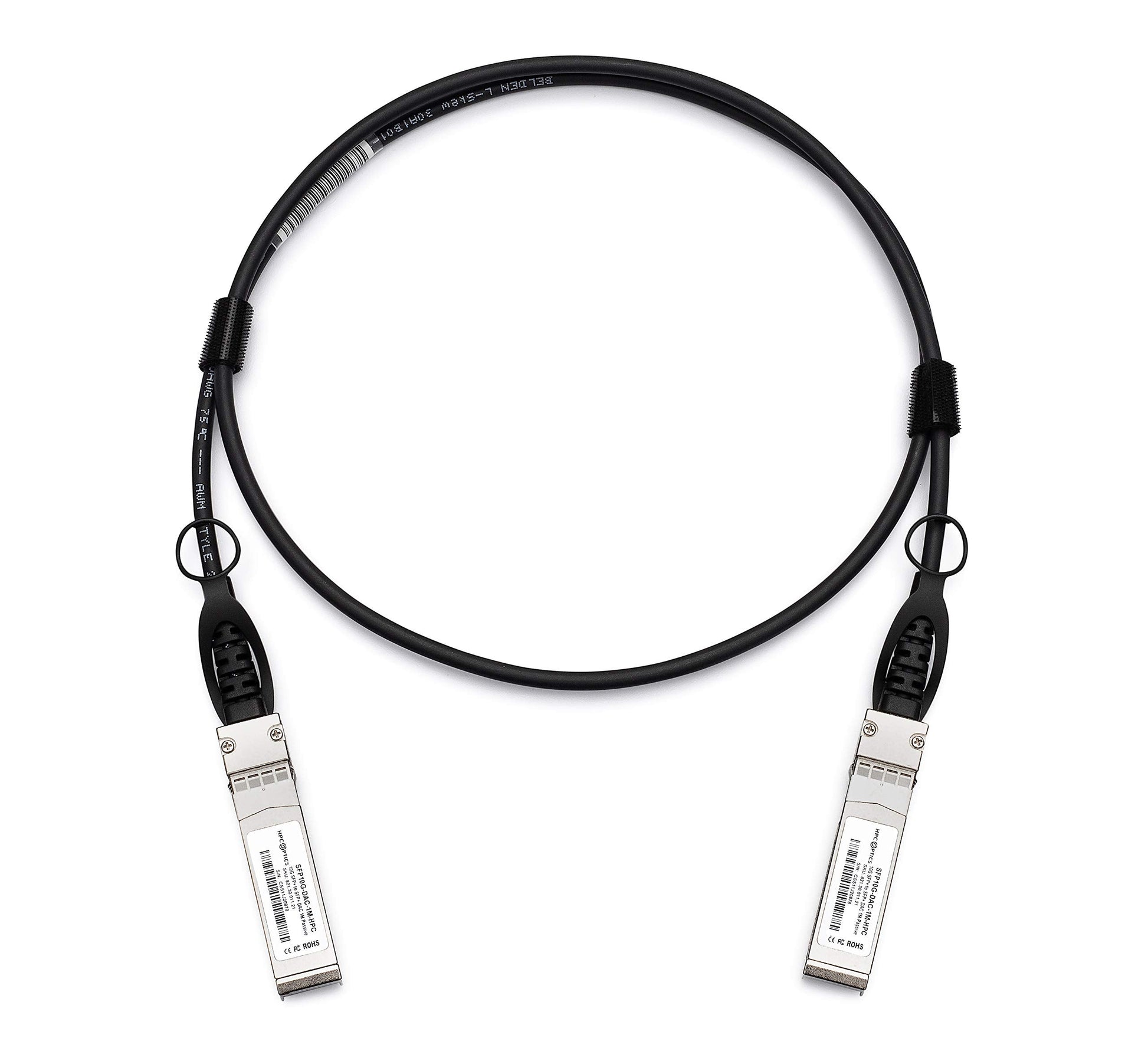

J9281D - HPE Aruba Transceivers 10G SFP+ to SFP+ 1m DAC Cable
100 in stock
Couldn't load pickup availability
The J9281D is a high-performance, 1-meter Direct Attach Copper (DAC) SFP+ cable designed for high-density connections in data centers and enterprise networks. It provides a cost-effective, low-latency solution for short-range 10G interconnects between switches, servers, and storage equipment.
Quick Specifications
| Parameter | Details |
|---|---|
| Product Code | J9281D |
| Optcore Part Number | SFP-10G-DAC-P1M-HP |
| Form Factor | SFP+ DAC Cable |
| Data Rate | 10.5 Gb/s |
| Cable Type | Twinax |
| Cable Length | 1 m |
| Impedance | 100 Ω |
| Wire Gauge | 30 AWG |
| Minimum Bend Radius | 25 mm |
| Cable Jacket | PVC |
| Connector | SFP+ |
| Passive/Active | Passive |
| Supply Voltage | 3.3 V |
| Digital Diagnostic Monitoring | N/A |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 0.1 kg |
| Compliance | SFF-8472, SFF-8431, IEC/EN 61000-4-2, MIL-STD-883E, RoHS |
Key Features & Benefits
-
High-Speed Connectivity – Supports 10G data rates, ideal for storage networks (SAN), network-attached storage (NAS), and high-performance networking equipment.
-
Cost-Effective Short-Range Solution – Passive twinax DAC cable provides low-latency interconnections without the need for optical transceivers.
-
Plug-and-Play – Simple installation with SFP+ connectors; no configuration required.
-
Reliable & Durable – PVC jacket with 30 AWG wire ensures signal integrity and protection against physical stress.
-
Compact Design – 1-meter length suitable for high-density racks and short-reach connections.
Ideal Use Cases
-
Connecting switches and servers in high-density data center racks
-
Storage Area Networks (SAN) interconnects
-
High-speed switch-to-switch uplinks
-
Short-range 10G network cabling for enterprise and industrial environments
-
Vendor:
aruba
-
Type:
Cables & Accessories
